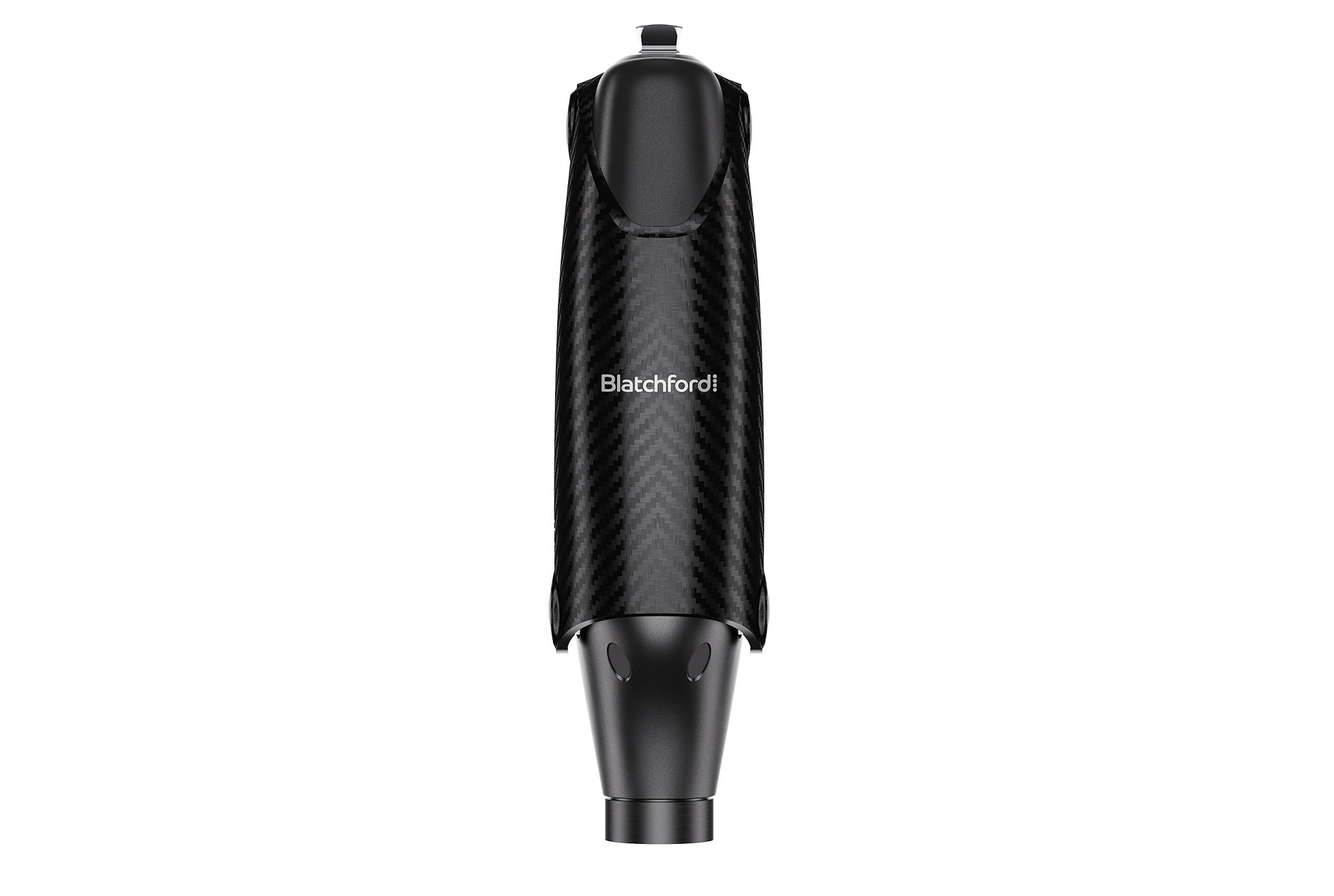

Avior Upright 91
Avior Tilted 70
Avior Closeup 2
Avior Lifestyle2
Avior Upright 54
Avior Tilted 49
Avior Closeup 5
Avior Lifestyle3
Avior Upright 39
Avior Tilted 84
Avior Closeup 6
Avior Location M 015 1920
Avior Charging Cable
Avior Upright 61
Avior Closeup 4
Avior Location J 010 1920
Avior Closeup 1

Lernen Sie Avior kennen – unser mikroprozessorgesteuertes Kniegelenk der nächsten Generation, das Mobilität für Menschen mit geringerem Aktivitätsniveau neu definiert. Avior bietet Stabilität, Sicherheit und ein sanftes Geherlebnis – ideal für neue Amputierte. Und das alles basiert auf unserer bahnbrechenden, biomimetischen Designphilosophie. Wenn die Anwender*innen Fortschritte machen und an Selbstvertrauen gewinnen, wächst Avior mit ihnen mit.

  • Aktivitäts-/Mobilitätsgrad: 1-2
  • IP Zertifizierung: IP65
  • Akkulaufzeit: Bis zu 48 Stunden*
View 360° Order

Meet Avior

Avior helps you to stand still with ease

“Avior ist einfach zu bedienen und ermöglicht es mir, die Dinge zu tun, die ich liebe – zum Beispiel Freunde zum Abendessen einzuladen oder im Garten spazieren zu gehen und quatschen.”

- Denise

Life isn’t one-size-fits-all, and neither is Avior - go beyond preset modes

Each patient is unique, which is why Avior allows you to tailor and fine-tune key features and settings to individual needs and clinical requirements, supporting wearers and ensuring confidence at every step of the journey.

Easy to set up with three base configurations

Quick and intuitive to set up, simply download our new SMARTSTEP® app, which guides you step-by-step through the programming sequence. In just 10 minutes, Avior is ready to go! Select the base configuration that best suits your wearer. These include: Lock-Lock, Lock-Free, Yield-Free.

Fine tune and customise key features and settings

Once the device is programmed, additional features can be fine-tuned to deliver optimal levels of resistance, maximising comfort, safety, and confidence for every wearer. These include: Stance Flexion, Swing Extension Control, Standing Support, Dynamic Slope & Stairs Descent, Supported Standing & Sitting.

Connecting prosthetists and physios for better outcomes

Our new SMARTSTEP® app will soon be accessible to Physios. Allowing them to adjust the device’s base configurations during physio sessions, supporting wearers in a safe environment as their mobility changes. Physios will also be able to video record activity sessions with wearers, which get logged against the device record so prosthetists can review at their convenience, or during the next prosthetic appointment.

Aids rehabilitation in between clinic sessions

Avior, powered by our SMARTSTEP® technology, enables remote monitoring of device usage statistics, including walking, sitting, and standing. This provides valuable insights into a wearer’s functional abilities and progress over time. For remote support or troubleshooting, wearers can securely record and share videos, data and any issues they encounter in their own environment via the SMARTSTEP® app, ensuring seamless communication with their prosthetist.^

Easily adaptable to the wearer's needs

Avior can be adapted to suit a range of functional abilities, whether the wearer starts out in a wheelchair or is a more confident ambulator. As the wearer’s confidence evolves, settings on Avior can be adjusted up or down at any time providing a truly flexible device.

Designed for today, ready for tomorrow

Thanks to the innovative SMARTSTEP® technology built into Avior, firmware updates can be made Over the Air (OTA). This allows clinicians to access updates directly in the clinic without returning the device to the manufacturer. As Blatchford releases new features and functions, clinicians can immediately access them using the OTA functionality.†

^Wearers must download the Blatchford SMARTSTEP® app to sync device data. Wearers need to connect to their Avior device as often as possible. | †Upon release, only the Blatchford team will be authorised to perform OTA updates.

Technical Info

Technical Info

  • Aktivitäts-/Mobilitätsgrad: 1-2
  • IP Zertifizierung: IP65
  • Akkulaufzeit: Bis zu 48 Stunden*
  • Max. Anwendergewicht: 125kg / 275lbs / 19st 6lbs
  • Amputationsgrad: Transfemorale Amputation, Knieexartikulation
  • Min. Anwendergewicht: 44kg / 97lb / 6st 9lbs
  • Mindestgröße des Anwenders: 150cm / 4ft 11"
  • Bauhöhe: 294mm
  • Gewicht: 1.39kg / 3lb 1oz
  • Flexionswinkel: Max 130 degrees
  • Bluetooth Verbindung: Ja
  • Proximaler Adapter: Feste proximale Pyramidenadapter oder M36-Gewinde Adapter
  • Proximaler Ausrichtungsaufsatz: Männliche Pyramide (Blatchford)
  • Distaler Ausrichtungsaufsatz: Ø 30mm Rohrschellenanschluss
  • Ladestation: Magnetische USB-A-Ladung
  • Aufladezeit : 4-6 Stunden

*Battery life is dependent on charge and usage

Key Features

Key Features of Avior

Polycentric Design

Our Avior MPK uses a biomimetic design, that mimics the natural movement of a human knee, combining both rolling and sliding motions. As the knee flexes, Avior's chassis moves backward similar to how the femur bone moves relative to the tibia in a real knee joint. This results in the socket being pressed into the wearer which helps maintain contact & control but also ensures the knees are symmetrical when seated.

Waterproof - Rated IP65

With an IP65 waterproof rating, Avior ensures that exposure to water won't disrupt your patient's day. They can confidently engage in water-based activities such as fishing, boating, or paddling without concern. Whether it's water splashes, accidental spills, light drizzle, or heavy showers, Avior provides complete peace of mind for your patients.

48hrs Battery Life

Stay powered for longer with up to 48 hours battery life, ensuring reliable performance. The convenient battery status indicator keeps wearers informed, and with a quick 4-6 hour recharge time, meaning they're always ready to go. Plus, the ON/OFF switch lets them preserve battery life when not in use, perfect for times when they forget their charger.

Magnetic USB-A Charging

Avior charges uses a magnetic USB-A charger, a common charging connection found in most homes, cars and other places, meaning wearers can easily charge their device on the go. The magnetic charging connection means it is easy for wearers to know when the charger has ‘snapped’ into place to charge.

3 x Baseline Configurations

Programmed with a choice of three base configurations, Avior is designed to support wearers at every stage of their journey and adapt with them, building confidence as they progress. Each configuration allows for key feature customisation, ensuring an optimal and natural user experience.

Avior Image Knee Bend Top Segment

Ready to order Avior?

If you think Avior ticks all of the boxes for your wearer’s needs, we have great news - it’s available to order online now!*

Don’t have a business account with us? Click here to register.

Enquire Now

Resources



Avior Resources

Compatible Products

Compatible Products

The Avior microprocessor knee offers tested & approved compatibility with a range of Blatchford prosthetic feet.

Avalon K2

Epirus

Esprit

Navigator

Programming

Device programming for prosthetists and physios

Smartstep Row Small

SMARTSTEP® is our cutting-edge digital care management platform developed exclusively by Blatchford and built into our prosthetic and orthotic devices.

Designed to provide Healthcare Professionals and wearers with access to detailed device data to improve outcomes, reduce rehab times and simplify care delivery.

Smartstep for Clinicians

Reimbursement

Bestellbar

AVIOR MK3 ASSEMBLY
Produktkode AVIOR
Preis: Ecommerce Demnächst
Avior Knee Pad Kit
Produktkode B-0001511
Preis: Ecommerce Demnächst
Avior Protective Cover
Produktkode B-0001512
Preis: Ecommerce Demnächst
M36 Adaptor Kit
Produktkode B-0001513
Preis: Ecommerce Demnächst
Flexion Stop Kit
Produktkode B-0001514
Preis: Ecommerce Demnächst
Clinicians Tool Kit
Produktkode B-0001515
Preis: Ecommerce Demnächst
USB charger Cable
Produktkode B-0001516
Preis: Ecommerce Demnächst
USB Wall charger with interchangeable plug
Produktkode B-0001517
Preis: Ecommerce Demnächst
Clamp kit
Produktkode B-0001518
Preis: Ecommerce Demnächst
Distal Cover kit
Produktkode B-0001519
Preis: Ecommerce Demnächst
AVIOR ACCESSORIES KIT (UK)
Produktkode B-0001507
Preis: Ecommerce Demnächst
AVIOR ACCESSORIES KIT (USA
Produktkode B-0001508
Preis: Ecommerce Demnächst
AVIOR ACCESSORIES KIT (EU)
Produktkode B-0001509
Preis: Ecommerce Demnächst
AVIOR ACCESSORIES KIT (AUS)
Produktkode B-0001510
Preis: Ecommerce Demnächst
AVIOR ACCESSORIES KIT (UNIVERSAL)
Produktkode B-0001536
Preis: Ecommerce Demnächst
